Noctua Offset Mounting Bars For Am4 & Am5 Cpu Coolers - Silver Nm-Amb12

Name: Noctua Offset Mounting Bars For Am4 & Am5 Cpu Coolers - Silver Nm-Amb12
Brand: Noctua

Noctua

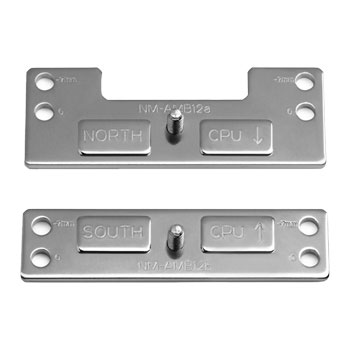

Noctua NM-AMB12 Offset AMD AM5 Mounting Bars 83mm Pitch\n\n[features] By offsetting the heatsink 7mm towards the south side of the CPU socket; more pressure is applied\nabove the CPU\u2019s CCD(s). This improved contact; exactly at the processor\u2019s hotspot can help reduce CPU temperatures in the range of 1-3\u00B0C. Replacing the standard mounting bars and re-using the original spacers and screws; the NM-AMB12 is a simple yet highly efficient solution to help optimise thermal performance on AM5-based AMD Ryzen CPUs.\nOffsetting for the hotspot AMD\u2019s latest Ryzen processors have their Core Complex Die(s) not at the centre; but slightly towards the south side of the CPU. By shifting the heatsink right above the hotspot created by the CCD(s) and applying optimal contact pressure where it matters the most; thermal performance can often be improved significantly. Cooler; faster; quieter While the results can vary due to different heat flux densities; tolerances of both the CPU an;
